Dangerous Goods Vehicles


XKC5120XQY6A
AVIC XINFEI dangerous goods transport vehicles include blasting equipment transport vehicles, gas cylinder transport vehicles, flammable liquid transport vehicles and miscellaneous dangerous goods transport vehicles.
Blasting equipment transport vehicle is also called anti-explosion vehicle, it is a kind of special cargo trucks with box structure, which are not closed at the top of the cargo box, and are equipped with fire-proof devices in front of the exhaust pipes. This kind of vehicle can be used to transport explosives, detonators, fireworks and firecrackers and etc.  It has the feature of high intensity body, fire retardant, waterproof, electrostatic spark preventing, flame alarm and burglar Alarm, etc.
XKC5120XQY6A
XINFEI BLASTING EQUIPMENT TRANSPORTER FEATURES
TECHNICAL SPECIFICATIONS
ONLINE SERVICE
XINFEI BLASTING EQUIPMENT TRANSPORTER FEATURES
1
Body Panels:
The blasting equipment transport vehicle of Xinfei, which uses the "Sandwich Panel" pressing process, defies industry expectations. The external cover of front, door and side walls adopt special roll-coating process high grade galvanized sheet, the external cover of ceiling panel is made up of a single piece of FRP sheet, the internal skin of body panels are made of anti-static aluminum plate, the inner layer is of high-density and flame retardant isolation foam.
2
Body Constructure:
The framework is welded with special anti-rust profiles, the rear door frame is constructed of stainless steel, the internal anti-static aluminum-alloy plate skin of panels on the sides and front are welded jointly and strengthened by cargo tracks. What’s more, the panel inner layer is made of high density and flame-retardant isolation material bonded with metal frames, making it stronger and safer than other similar products in the market.
3
DG Special-purpose Chassis:
Adopting specialized hazardous goods chassis, which is suitable for the modification needs of hazardous materials vehicles. The engine is with its exhaust device front-mounted, and install exhaust spark arrester to prevent heat source adverse effects of explosives. The Chassis equipped with two drag static conductive tape.
4
Lightweight Design:
Thanks to the lightweight design and intellectualized manufacturing, our vehicle body is 5-10% lighter than the traditional structure, the secondary chassis is optimized and strengthened, which lowers operating costs and adds value to clients. Thus, our dangerous goods transport vehicles are more preferred in the market because of its energy saving and high efficiency.
5
Security Devices:
Smoke alarm, burglar alarm (theft alarm), anti-static electricity rubber sheet for the floor, anti-static electricity strips, fire-proof, water-proof, portable fire extinguisher, GPS monitoring system, etc.
6
Luxury Appearance & Long Lifespan:

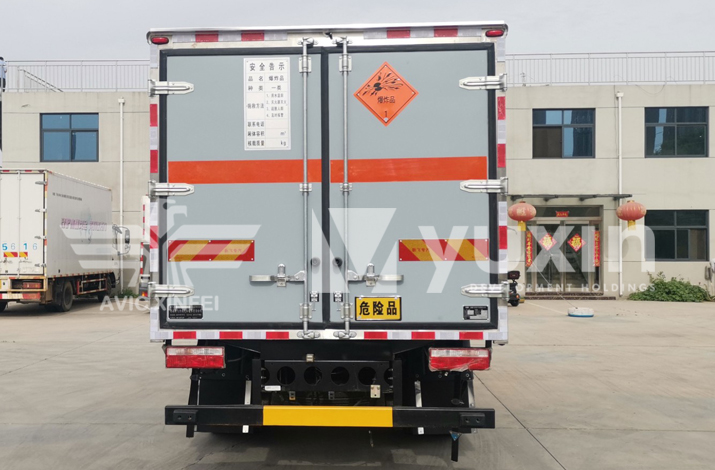

With no welding seals on body, the appearance of the vehicles is smooth and beautiful. Stainless steel rear door frame, high-end aluminum alloy profiles, EPDM rubber strips for the doors, high-end galvanized or stainless-steel door bars and locks, which prolong the lifespan of the vehicles.
7
Body Colors:
Use special roll-coating process high grade galvanized sheet as the body external cover, yellow and grey colors are available. No painting, the vehicles are more eco-friendly and efficient.
8
Warning Signs:
Hazard warning lights, retro-reflective markings, clearance lights, and hazardous goods diamond signs are installed to warn other vehicles.
TECHNICAL SPECIFICATIONS
Xinfei autonomously upgraded blasting equipment transporter to a new level based on key industries and national norms in China, combining the features of domestic highways and the hazardous goods transportation business.

It has won the Henan Science and Technology Award and holds a number of patents for practical technologies and inventions, not only because of its lightweight, intelligent manufacturing, environmental protection, and durability design, but also because it complies with national laws and regulations, keeps up with the times, and leads the market and industry's development.

Xinfei explosive cargo truck features long service life. The external cover panel is made of a special roll-coating process sheet, and the external header panel is made up of a single piece of FRP sheet. Free from painting, so it is resistant to aging.
When it comes to internal construction, the skin is made of anti-static aluminum plate and the framework is welded with special anti-rust profiles. The inner layer is of high-density and flame-resistance. It is Xinfei who pioneered the "Sandwich Panel" approach, which resulted in higher performance that is both sturdy and dependable.

The rear door frame is constructed of stainless steel, and the sealing strip is made of EPDM rubber. The vehicle also has a specific rainproof ventilation device for good rainproof performance.  Furthermore, the vehicle's bottom plate is covered with a static conductive rubber layer. The vehicle is well-built, with galvanized and stainless steel hardware of the highest quality. Edging corners are also made of high-grade aluminum alloy and stainless steel, which fulfill the requirements for energy efficiency, aesthetics, dependability, and durability, as well as explosion-proof, rainproof, anti-theft, and other related features.

The features of safety, dependability, high efficiency, and energy savings (lightweight) have satisfied the needs of mid-to-high end markets and won customers' trust since its introduction. It has aided in the development of China's hazardous goods logistics business, as well as the reduction of safety hazards and effective risk management.

Refitted Vehicle Main Technical Specifications
Vehicle Model: XKC5120XQY6A
Vehicle Type Blasting Equipment Transporter
Vehicle Manufacturer AVIC Henan Xinfei Special Purpose Vehicle Co., Ltd.
Vehicle Brand AVIC XINFEI
Vehicle Overall Size  (LxWxH) mm 6980 2310 3050
Box Internal Size  (LxWxH) mm 5000 2200 1850
Box Volume 20
GVW kg 11995
Curb Weight kg 4750
Payload Weight kg 7050
Fuel Consumption l/100km 20.85
Maximum Speed km/h 80
Rated Cab Passengers person 3
Front/Rear Suspension mm
Approach/Departure Angle
Chassis Manufacturer FAW
Chassis Model CA1120P40K59L4BE6A84
Axle Nos   2
Wheelbase   3900
Transmission Type Manual
Engine Manufatcurer WEICHAI
Engine Model WP3NQ160E61
Engine Power 118kW
Fuel Type Diesel
Emissoin Standard China VI
Steering Type LHD or RHD
Tyre Specification   245/70R19.5-16PR, 8.25R20-16PR
Tyre QTY   6 pcs
Antilock Brake System (ABS) YES
Rear Door - standard   Rear Swing Dual Doors

NOTE:
1. The blasting equipment transport vehicle only adopts specially made DG chassis equipped with front-mount exhaust pipe, disc-brake front wheels and radial tires; which steering wheel is equipped with tire blowout emergency protection device, and rear axle adopts air suspension.
2. The vehicle body is closed at the top and cannot be opened. One or two single door(s) or a double doors, as options, can be added on both sides of the box. The side doors and rear doors can choose single door bars or double door bars.
3. The made-of-Q235-material side and rear protections are fitted to the vehicle by bolts, the rear protection section size is 120x60mm, which distance to the ground is 480mm
4. The vehicle is equipped with a speed limiting device with a speed limit of 80km/h.
5. The vehicle is equipped with a tachograph with satellite positioning function.
6. Dangerous Goods Transport Vehicle Class: EX/III.
7. Dangerous Goods Category #: I.
   Dangerous Goods Division #: 1.1D, 1.1D, 1.1B, 1.1B, 1.1D, 1.1G, 1.3C, 1.3C, 1.1D, 1.2D, 1.1D, 1.1D, 1.4D, 1.1D, 1.3C, 1.1C, 1.2C.
8. The blasting equipment transport vehicle is used to transport dangerous goods in separate containers as follows: black powder, compressed black powder, electric detonators, non-electric detonators, blasting explosives, special pyrotechnic products, smokeless powder, paste explosive, Ignite fuse, safety fuse, commercial explosive charges (without detonators), projectiles, shaped charges (without detonators), detonating cords (soft), cartridges for combined oil, propellants, cartridges for power units.
